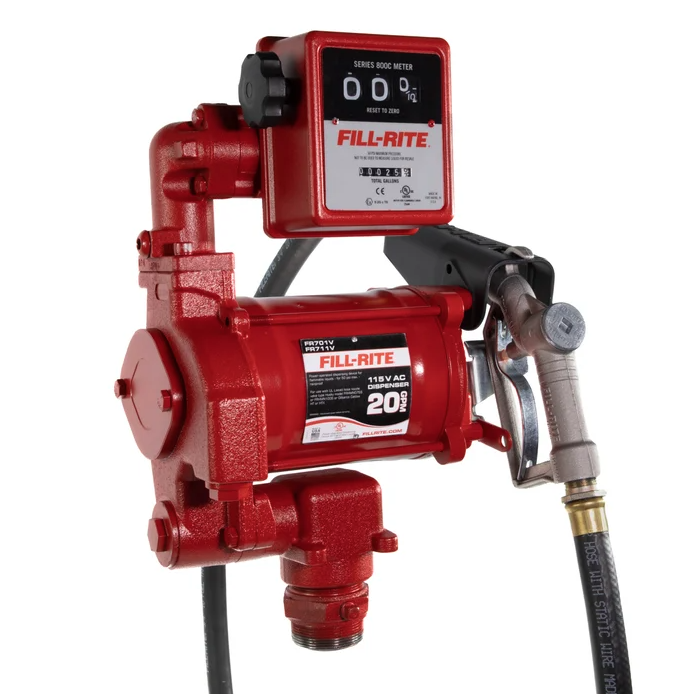

Fr701v 115v Ac 20 Gpm Heavy-duty Fuel Transfer Pump With Meter & Nozzle
UPC #089404006535
FILL-RITE
Description
The FILL-RITE FR701V is a robust and reliable 115V AC fuel transfer pump designed for heavy-duty applications. With a maximum flow rate of 20 gallons per minute, this pump is perfect for transferring gasoline, diesel, biodiesel up to B20, kerosene, and mineral spirits. This comprehensive bundle includes a mechanical meter, a durable hose, and a manual nozzle, making it an ideal choice for both commercial and residential use.
Engineered for performance and longevity, the FR701V features:
- Industry Leading Performance: Transfers fuel at an impressive rate of 20 gallons per minute, making it suitable for medium-sized equipment and aboveground storage tanks.
- Proven Technology: Utilizes rotary vane technology that has been trusted for over 60 years, ensuring consistent flow performance throughout the pump's lifespan.
- Durable Construction: Built with heavy-duty cast-iron, this pump is designed to withstand daily use in high-volume, stationary applications.
- Thermal Protection: The thermally-protected motor prevents overheating, ensuring the pump operates efficiently and lasts longer.
- Limited Lifetime Warranty: Backed by an industry-leading warranty, providing peace of mind for your investment.
Whether you are filling up equipment on a job site or managing fuel transfer at home, the FILL-RITE FR701V is built to handle the toughest conditions. Its rugged design and reliable performance make it a trusted choice for professionals and DIY enthusiasts alike. With easy installation and a wide network of support for replacement parts, you can count on FILL-RITE to keep your operations running smoothly.
| Max Flowrate | 20 GPM / 75 LPM |
|---|---|
| Flowrate Range | 0-20 |
| Inlet / Outlet Thread Size (in.) | 1.25 " / 0.75 " |
| Mounting Size / Thread / Type | 2" / NPT / Electric |
| Duty Cycle | 30 min on / 30 min off |
| Motor Power | 0.33 HP |
| Power Type | AC |
| Suction Lift (ft.) | 15 ' |
| Dry Vacuum (in. Hg) | 12 |
| Max Discharge Pressure | 23 PSI |
| Discharge Head (ft.) | 53 ' |
| Max Operating Pressure (PSI) | 23 |
| Strainer Mesh Size (micron) | 40 x 40 x .010" |
| Accuracy (+/- %) | 1 % |
| Repeatability (+/- %) | 0.38 % |
| Display Type | Mechanical |
| Display Digits | 3 |
| Viscosity Range (cSt) | 0.38 - 2.4 |
| Meter | 807C Mechanical Meter (Gallons) |
|---|---|
| Discharge Hose | ¾” X 12’ UL Listed Hose with Static Ground Wire |
| Nozzle | ¾” Cast Aluminum Manual Nozzle |
| Cable Connection | Hard-Wire |
| Assembled Product Height x Width x Depth (in.) | 19 x 14.2 x 11.9 |
|---|---|
| Assembled Product Weight (lbs.) | 54.3 |
| Package Height x Width x Depth (in.) | 10.25 x 20.56 x 19.56 |
| Gross Weight (lbs.) | 62.400 lbs |
